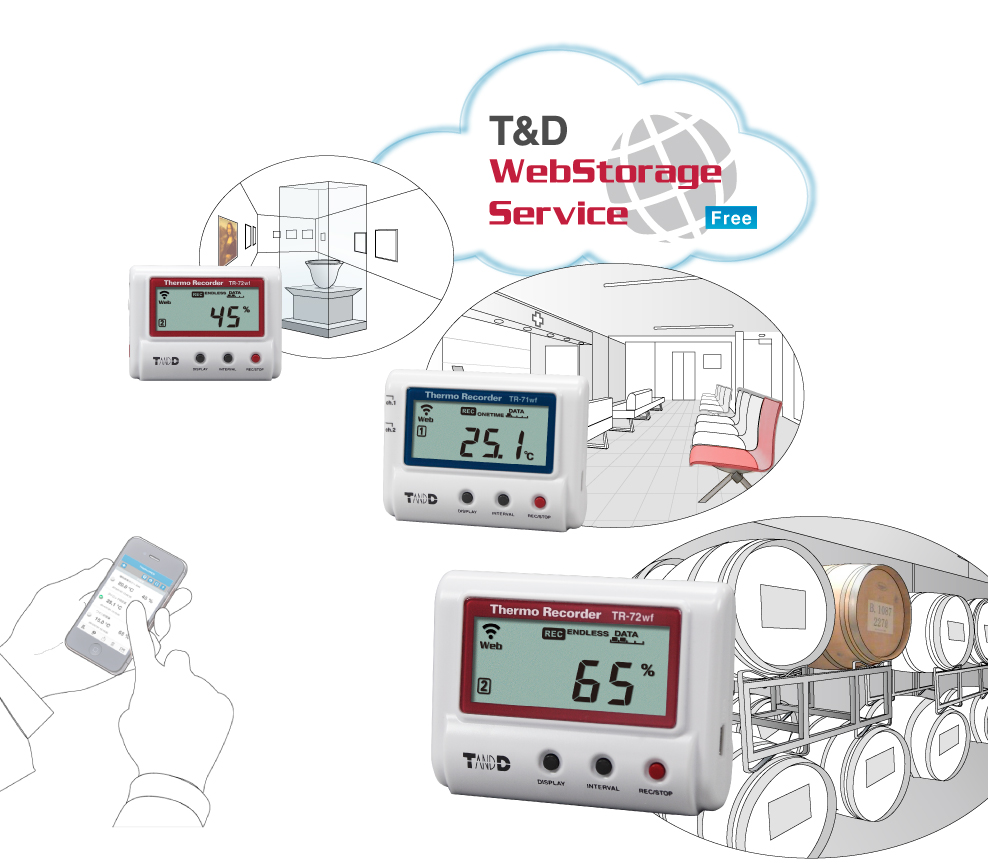

Με τη χρήση ενός ασύρματου δικτύου LAN, τα καταγεγραμμένα δεδομένα θα φορτωθούν αυτόματα στην υπηρεσία T & D WebStorage.
Η υπηρεσία «T & D WebStorage« μπορεί να χρησιμοποιηθεί με τις κινητές συσκευές, όπως τα έξυπνα τηλέφωνα και τα tablet, που διευκολύνουν την πρόσβαση σε δεδομένα οποιαδήποτε στιγμή, οπουδήποτε. Αυτή η υπηρεσία επιτρέπει επίσης την παρακολούθηση της τρέχουσας κατάστασης, του γραφήματος στην οθόνη, την παρακολούθηση του συναγερμού, και τη λήψη των καταγεγραμμένων δεδομένων με τη χρήση του T & D WebStorage (cloud).
.
.
.
Τεχνικές Προδιαγραφές:
| TR-71wf | TR-72wf | TR-72wf-H | ||||
| Measurement Channels | Temperature 2ch (Internal 1ch / External 2ch) | Temperature 1ch, Humidity 1ch (External) | Temperature 1ch, Humidity 1ch (External) | |||
| Sensor | Thermistor | Thermistor | Polymer Resistance | Platinum Resistance | Electrostatic Capacitance | |
| Measurement Units | °C, °F | °C, °F | %RH | °C, °F | %RH | |
| Measurement Range | Internal Sensor | -10 to 60 °C (*1) | – | – | – | – |
| External Sensor | -40 to 110 °C (Supplied Sensor) -60 to 155 °C (Optional Sensor: Fluoropolymer Coated Type) | 0 to 55 °C | 10 to 95 %RH | -30 to 80 °C | 0 to 99 %RH | |
| Accuracy | Avg. ± 0.3 °C [-20 to 80 °C] Avg. ± 0.5 °C [-40 to -20 °C / 80 to 110 °C] | ±0.5 °C | ±5 %RH [at 25 °C, 50 %RH] | ±0.3 °C [0 to 50 °C] ±0.5 °C [all other temperatures] | ±2.5 %RH [at 25 °C, 10 to 85 %RH] ±4.0 %RH [at 25 °C, 0 to 10 % or 85 to 99 %RH] At temperatures other than 25 °C and ≥ 0 °C, add ±0.1 %RH per degree of difference from 25. Humidity Hysteresis: ±1.5 %RH or lower (*2) | |
| Measurement Resolution | 0.1 °C | 0.1 °C | 1 %RH | 0.1 °C | 0.1 %RH | |
| Responsiveness | Thermal Time Constant: Approx. 75 sec. Response Time (90%): Approx. 190 sec. | Response Time (90%): Approx. 7 min. | Response Time (90%): Approx. 7 min. | Response Time (90%): Approx. 20 sec. | ||
| LCD Display Items | Measurements (fixed or alternating display), Battery Warning Mark, etc. | |||||
| Logging Capacity | 8,000 data sets (One data set consists of readings for all channels in that type of unit.) | |||||
| Recording Interval | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. | |||||
| Recording Mode | Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) | |||||
| Auto-upload Interval | Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs. | |||||
| Communication Interfaces | Wireless LAN Communication • Standard: IEEE 802.11b • Security (*3): WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES) • WPS 2.0 : Push Button Configuration • Protocol: HTTP, DHCP, DNS USB Communication (*4) • USB 2.0 (Mini-B connector) | |||||
| Power | AA Alkaline Battery x 2 (AA Ni-MH batteries may also be used), USB Bus Power (5V 200mA) | |||||
| Battery Life (*5) | With wireless LAN communication: Approx. 10 days to 1.5 years (Ex: Approx. 10 days when Auto-upload Interval is 1 min, 1 yr when 1 hr, 1.5 yrs when 12 hrs or more) Without wireless LAN communication: Approx. 1.5 years | |||||
| Dimensions | H 58 mm x W 78 mm x D 26 mm | |||||
| Weight | Approx. 100 g (including batteries) | |||||
| Operating Environment | Temperature: -10 to 60 °C Humidity: 90 %RH or less (no condensation) | |||||
| Accessories | Temperature Sensor (TR-0106) x 2 | Temperature/Humidity Sensor (THA-3001) x 1 | High Precision Temperature/Humidity Sensor (HHA-3151) x 1 | |||
| AA Alkaline Battery (LR6) x 2, Registration Code Label, Manual Set (Warranty Included) | ||||||
